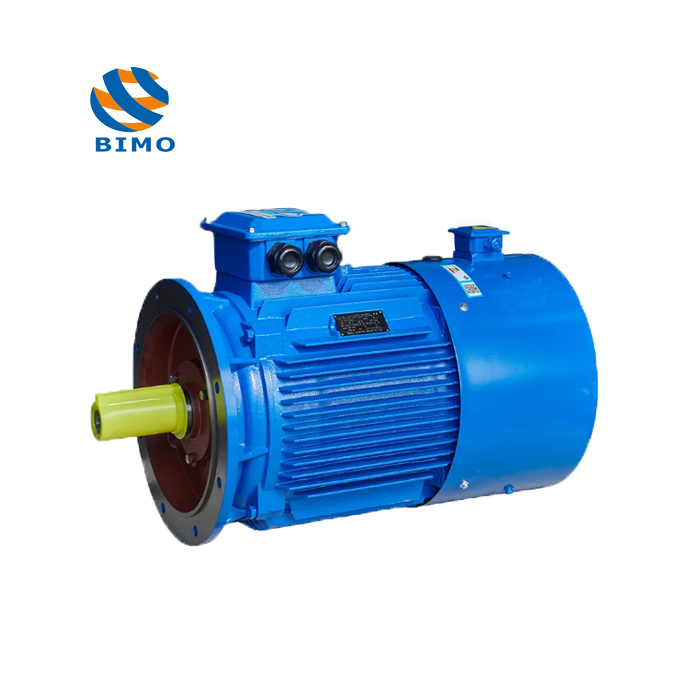

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor

  • 1
  • 2
  • 3

Brand Name : BM

Model Number : YVF2-280S-2

Certification : CE

Place of Origin : China

MOQ : 10 pcs

Price : USD38-USD680

Payment Terms : T/T

Supply Ability : 1000pcs per day

Delivery Time : Usually within 30 days

Packaging Details : Cartons/Pallet

Name : 75KW variable speed ac motor

Insulation Class : F

Mounting Type : B3 B5 B35

Frequency : 50Hz/60Hz

Enclosure : IP55

Power : 75KW

Contact Now

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor

1, YVF2 Series Variable Speed Motors are AC high efficiency, energy saving motors. It can be configured with the frequency converter from domastic and abroad.

2, It has the characteristics with reliable operation and easy maintenance. Separate axial-flow ventilator is installed, which can guarantee a better cooling effect in different speed.

3, YVF2 series motors can be widely applied to the equipment which need speed control in light industry, textile,chemical, metallurgy and machine tool industries etc

4, YVF2 series motors are supplied with the ball bearing as standard. These bearings are either of the sealed or regreasable type.

Model Rated Output Rated current Rated Speed Eff Power Factor Rated Torque Noise Level LW Constant Torque Constant Output
Frequency Range Frequency Range
YVF2 kW (A) (r/min) % cosφ (N.m) dB(A) Hz Hz
Synchronous speed 3000r/min
YVF2-80M1-2 0.75 1.83 2845 75 0.83 2.52 73 5-50 50-100
YVF2-80M2-2 1.1 2.61 2845 76.2 0.84 3.69 73
YVF2-90S-2 1.5 3.46 2840 78.5 0.84 5.04 76
YVF2-90L-2 2.2 4.85 2840 81 0.85 7.4 76
YVF2-100L-2 3 6.34 2860 82.6 0.87 10.1 79
YVF2-112M-2 4 8.2 2880 81.2 0.88 13.3 80
YVF2-132S1-2 5.5 11.1 2900 85.7 0.88 18.1 86
YVF2-132S2-2 7.5 14.9 2900 87 0.88 24.7 86
YVF2-160M1-2 11 21.2 2930 88.4 0.89 35.9 90
YVF2-160M2-2 15 28.6 2930 89.4 0.89 48.9 90
YVF2-160L-2 18.5 34.7 2930 90 0.9 60.3 90
YVF2-180M-2 22 41 2940 90.5 0.9 71.5 91
YVF2-200L1-2 30 55.4 2950 91.4 0.9 97 92
YVF2-200L2-2 37 67.9 2950 92 0.9 120 92
YVF2-225M-2 45 82.1 2960 92.5 0.9 145 94
YVF2-250M-2 55 99.8 2965 93 0.9 177 96 5-50 50-70
YVF2-280S-2 75 135 2970 93.6 0.9 241 99
YVF2-280M-2 90 160 2970 93.9 0.91 297 99
YVF2-315S-2 110 195 2975 94 0.91 353 105 5-50 50-60
YVF2-315M-2 132 233 2975 94.5 0.91 424 105
YVF2-315L1-2 160 279 2975 94.6 0.92 514 109
YVF2-315L-2 185 323 2975 94.6 0.92 594 109
YVF2-315L2-2 200 348 2975 94.8 0.92 642 109
YVF2-315L3-2 220 383 2975 94.8 0.92 706 109
YVF2-355M1-2 220 383 2975 94.8 0.92 705 111
YVF2-355M2-2 250 435 2980 95 0.92 801 111
YVF2-355L1-2 280 487 2980 95 0.92 897 113
YVF2-355L-2 315 548 2980 95 0.92 1009 113
YVF2-355L2-2 355 617 2980 95 0.92 1138 113
YVF2-355L3-2 375 652 2980 95 0.92 1202 113

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous MotorYVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor

YVF2/YVP Series YVF2-280S-2 75KW Variable Frequency Speed Three-Phase Asynchronous Motor

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
